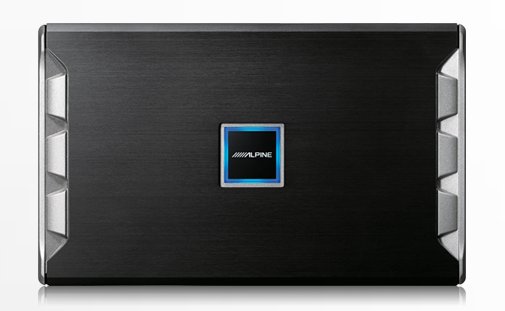

Alpine PDR-V75 5 Channel Digital Amplifier

Concentrated power for a full system
Alpine managed to pack more power per square inch into their PDR-V75 5-channel Power Density Reference amplifier than almost any other amp in its class. The PDR-V75 can put out 75 watts RMS per channel to your four full-range speakers, plus up to 350 watts RMS to a subwoofer, and it'll fit into many of the tight spaces you find in many cars and trucks these days. You can also use this versatile amp in 3-channel mode, driving a pair of high-performance speakers with 200 watts each, while still sending 350 watts RMS to a sub.

Tone control
Alpine included the tone controls you'll need to tune your system so your speakers and sub sound their best. You can use the high-pass filters to remove the extreme low bass from your full-range speakers, so they'll play more efficiently. You can adjust the subwoofer channel's low-pass filter, subsonic filter, and bass boost to get just the right bass tone, and you can add the optional RUX-KNOB remote bass knob to control your bass from the dash.

Superior sound and build quality
Alpine PDR-V75
Alpine built the PDR-V75 to exacting physical and electronic standards, resulting in a tough, powerful amp with an incredibly clean and noise-free output. All the electrical connections are located on one side, for more convenient and neat installations. Speaker-level inputs allow you to use this amp in almost any system, even one with a factory radio. And you can rotate the badge, so the Alpine logo can always display right side up, no matter which way you mount your PDR-V75.

Product Highlights:
5-channel car amplifier
75 watts RMS x 4 + 250 watts RMS x 1 at 4 ohms
100 watts RMS x 4 + 350 watts RMS x 1 at 2 ohms
200 watts RMS x 2 bridged at 4 ohms + 350 watts RMS x 1 at 2 ohms
CEA-2006 compliant
variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section
variable low-pass filter (50-400 Hz, 24 dB/octave) on sub channel
variable subsonic filter (8-40 Hz, 24 dB/oct) on sub channel
variable bass boost (0-12 dB at 50 Hz) on sub channel
More Features

optional remote level control for sub channel (RUX-KNOB)
preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
Class-D amplifier design
MOSFET power and output stages
fuse rating: 40A x 2
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
10-5/8"W x 2"H x 6-9/16"D
