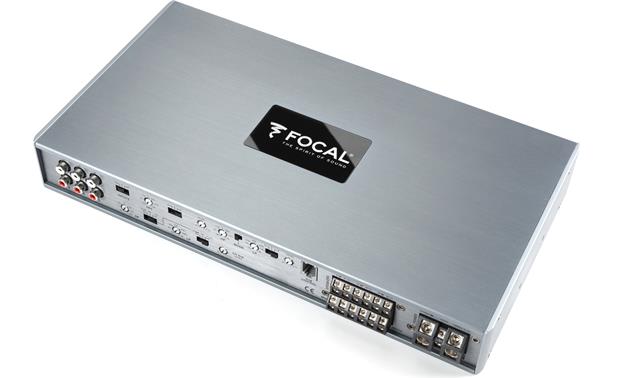

6-channel car amplifier
150 watts RMS x 6 at 4 ohms
200 watts RMS x 4 + 275 watts RMS x 2 at 2 ohms
400 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 bridged at 4 ohms (Ch 1-4 stable at 4-ohms in bridged mode)
400 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 bridged at 2 ohms (Ch 5-6 stable at 2-ohms in bridged mode)
CEA-2006 compliant
full-range Class D amp technology
Ch 1-2:
variable high-pass filter (50-4000 Hz, 12dB/octave), flat, or copy Ch 3-4 settings
Ch 3-4:
variable high-pass and low-pass filters (50-4000 Hz, 12dB/octave)
bandpass filter option (uses low-pass and high-pass settings)
Ch 5-6:
variable high-pass (subsonic) filter (10-120 Hz, 12 dB/octave)
variable low-pass filter (45-4000 Hz, 12dB/octave)
bandpass filter option (uses low-pass and high-pass settings)
Other Features
frequency response: 5-30,000 Hz
preamp and speaker-level inputs
high-level inputs require speaker wire to RCA adapters
auto signal-detection and turn-on with high-level input
remote subwoofer level control with LED clip light included
fuse rating: 25A x 3
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
dimensions: 14-5/16"W x 2"H x 8"D
