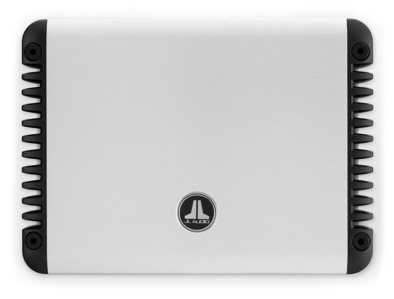

JL Audio HD900/5 5-Channel Class-D System Amplifier

5-Channel Class D System Amplifier, 100 W x 4 + 500 W x 1 Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal. While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power! Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 4 Ω 100 W RMS x 4 Main Channels @ 3 Ω 75 W RMS x 4 Main Channels @ 2 Ω 75 W RMS x 4 Main Channels @ 1.5 Ω 75 W RMS x 4 Main Channels - Bridged @ 8 Ω 200 W RMS x 2 Main Channels - Bridged @ 4 Ω 150 W RMS x 2 Subwoofer Channel @ 4 Ω 500 W RMS x 1 Subwoofer Channel @ 3 Ω 500 W RMS x 1 Subwoofer Channel @ 2 Ω 500 W RMS x 1 Subwoofer Channel @ 1.5 Ω 500 W RMS x 1 Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 4 Ω 100 W RMS x 4 Main Channels @ 3 Ω 75 W RMS x 4 Main Channels @ 2 Ω 75 W RMS x 4 Main Channels @ 1.5 Ω 75 W RMS x 4 Main Channels - Bridged @ 8 Ω 200 W RMS x 2 Main Channels - Bridged @ 4 Ω 150 W RMS x 2 Subwoofer Channel @ 4 Ω 500 W RMS x 1 Subwoofer Channel @ 3 Ω 500 W RMS x 1 Subwoofer Channel @ 2 Ω 500 W RMS x 1 Subwoofer Channel @ 1.5 Ω 500 W RMS x 1 General Specifications Frequency Response (Main Channels) 12 Hz - 28 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 12 Hz - 10 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >300 / 50 Hz Damping Factor @ 2 Ω >150 / 50 Hz THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 5 Ω Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Signal Processing Filter Modes: Channels 1 & 2 (front) High-Pass only Filter Slope (dB/Octave): Channels 1 & 2 (front) 12 dB or 24 dB Filter Frequency Range: Channels 1 & 2 (front) 50-500 Hz Filter Modes: Channels 3 & 4 (rear) High-Pass only Filter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dB or 24 dB Filter Frequency Range: Channels 3&4 50-500 Hz Filter Modes: Subwoofer Channel Low-Pass only Filter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dB Filter Frequency Range: Subwoofer Channel 50-500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filters Defeatable? Yes Infrasonic Filter: Subwoofer Channel 30 Hz, Defeatable Remote Level Control Optional (HD-RLC) Remote Level Modes Sub Ch. only Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A Height (H) 1.93 in / 49 mm Width (W) 10.74 in / 273 mm Depth (D) 8.29 in / 211 mm Net Weight 6.85 lb / 3.11 kg
