JL Audio MX500/1 Monoblock Class D Wide-Range Amplifier 500 W

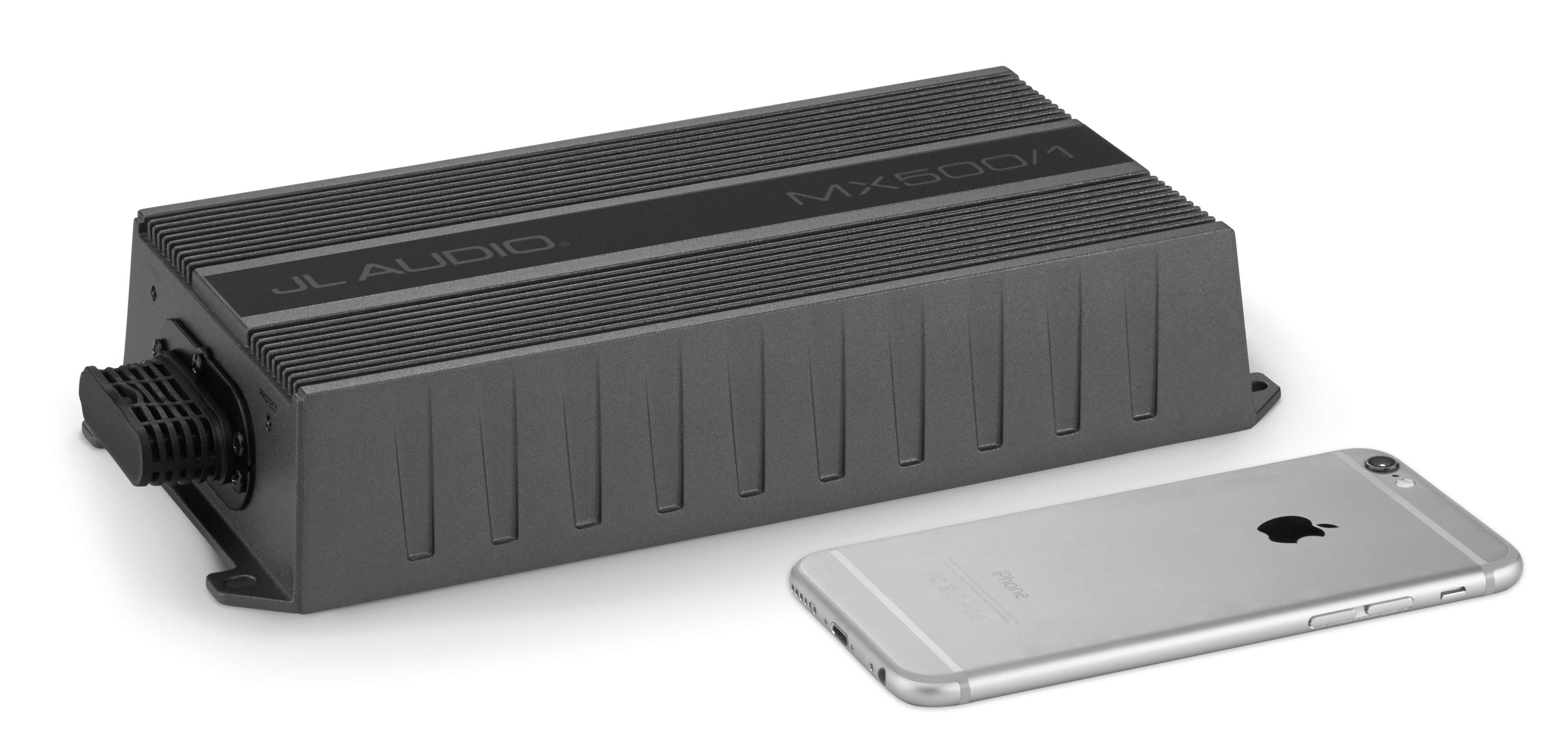

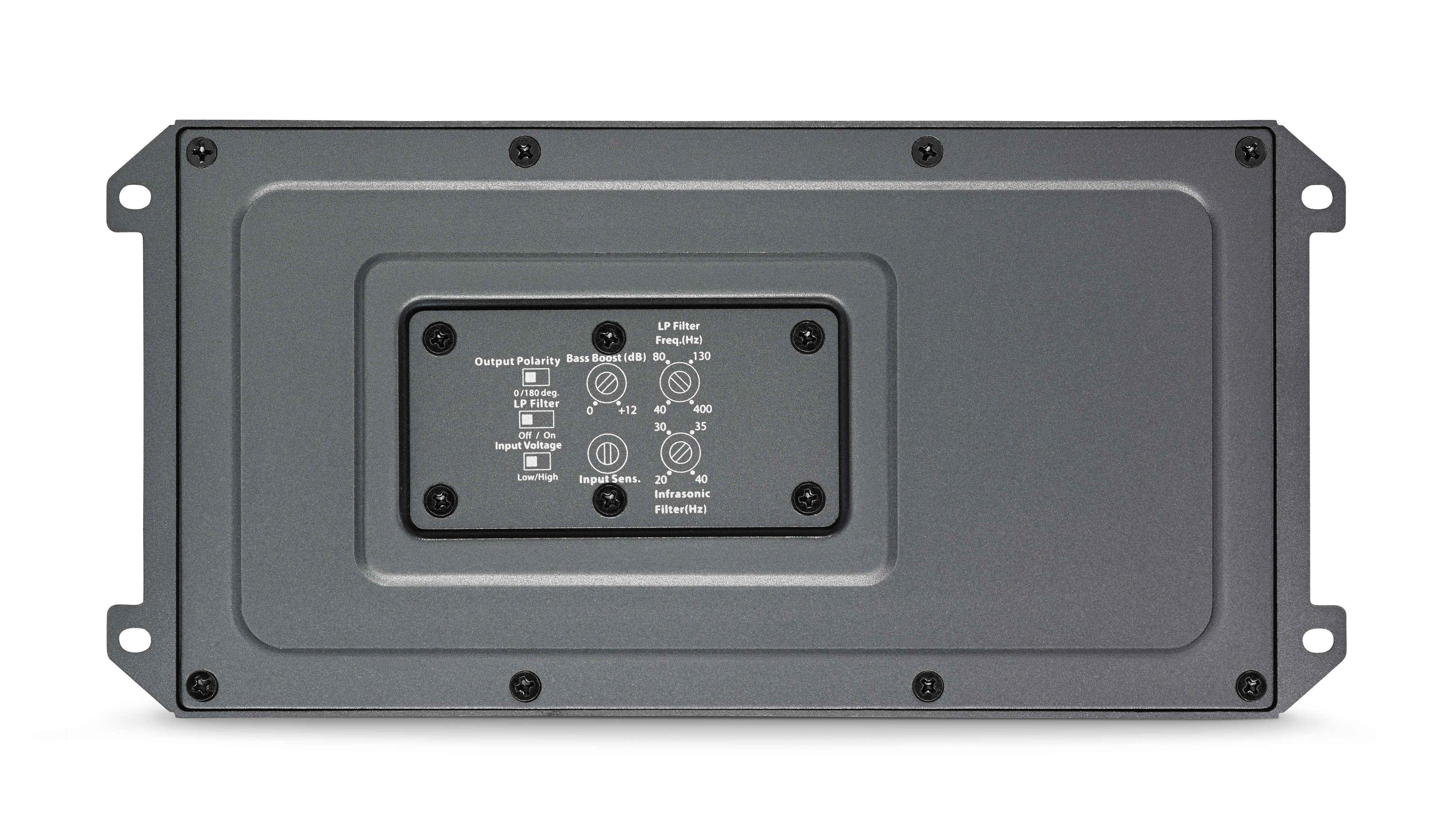

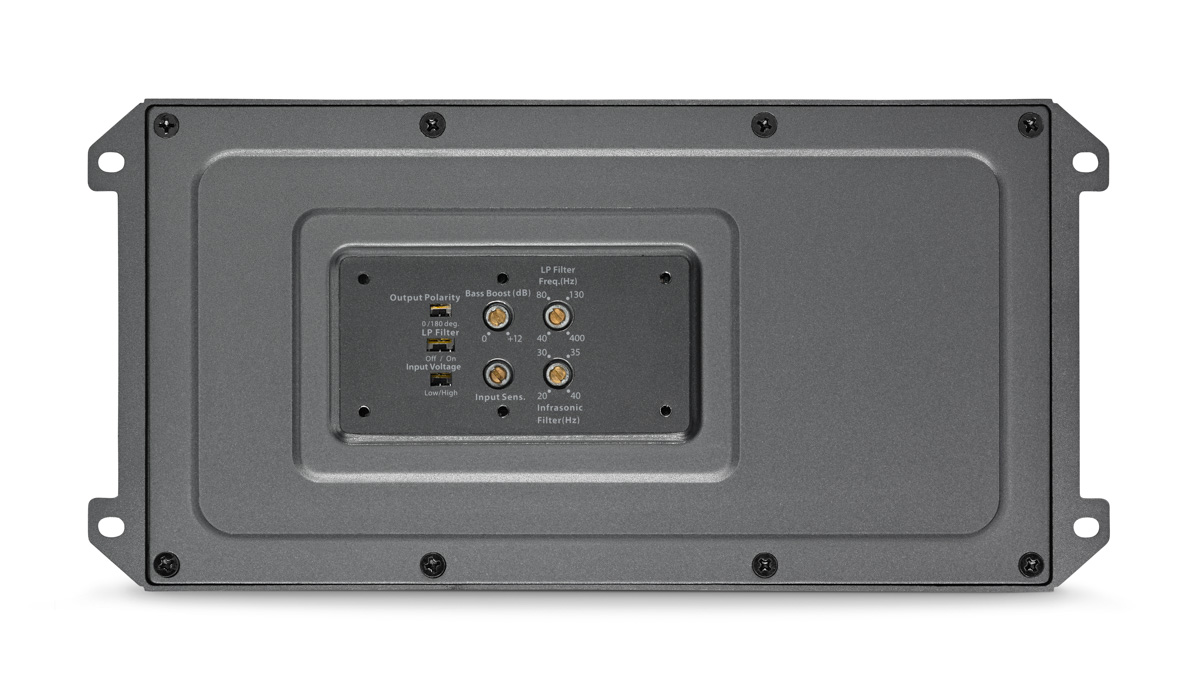

Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles. With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch. Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat. This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω 300 W RMS x 1 @ 3 Ω 400 W RMS x 1 @ 2 Ω 500 W RMS x 1 @ 1.5 Ω N/A Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω 250 W RMS x 1 @ 3 Ω 300 W RMS x 1 @ 2 Ω 400 W RMS x 1 @ 1.5 Ω N/A General Specifications Frequency Response 20 Hz - 12 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >115 / 50 Hz Damping Factor @ 2 Ω >54 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Signal Processing Filter Mode(s) Low-Pass only Filter Slope(s) 24 dB/octave Filter Frequency Range 40 Hz - 400 Hz Detented, Calibrated Filter Freq. Potentiometer Yes Filter Defeat Function Yes Infrasonic Filter 20 Hz - 40 Hz, variable Bass Boost EQ 0 to +12 dB @ 43 Hz Output Polarity Switch Yes Remote Subwoofer Level Control Optional (M-RBC-1) Remote Bass EQ Boost Control No Pass-Through Preamp Output None Physical Specifications Height (H) 1.77 in / 45 mm Width (W) 9.33 in / 237 mm Depth (D) 4.50 in / 115 mm
