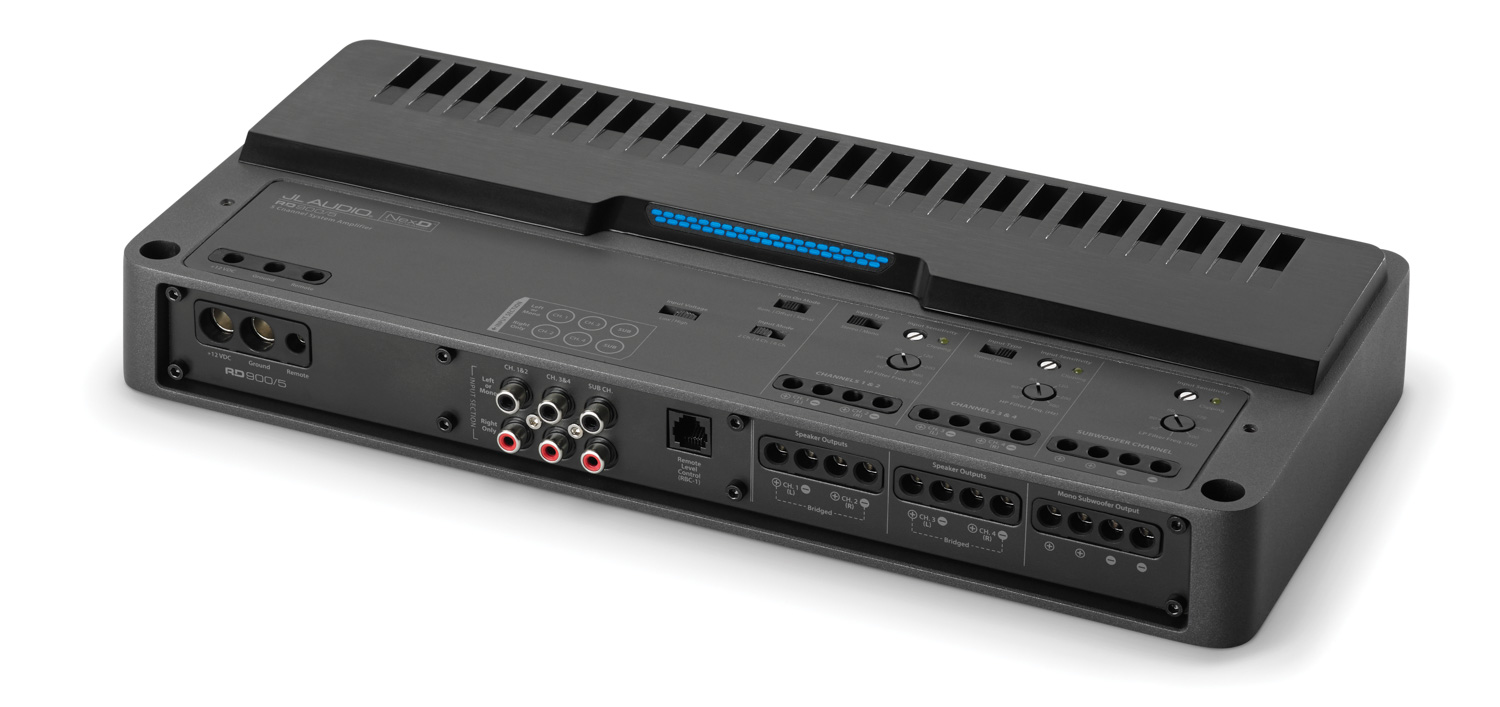

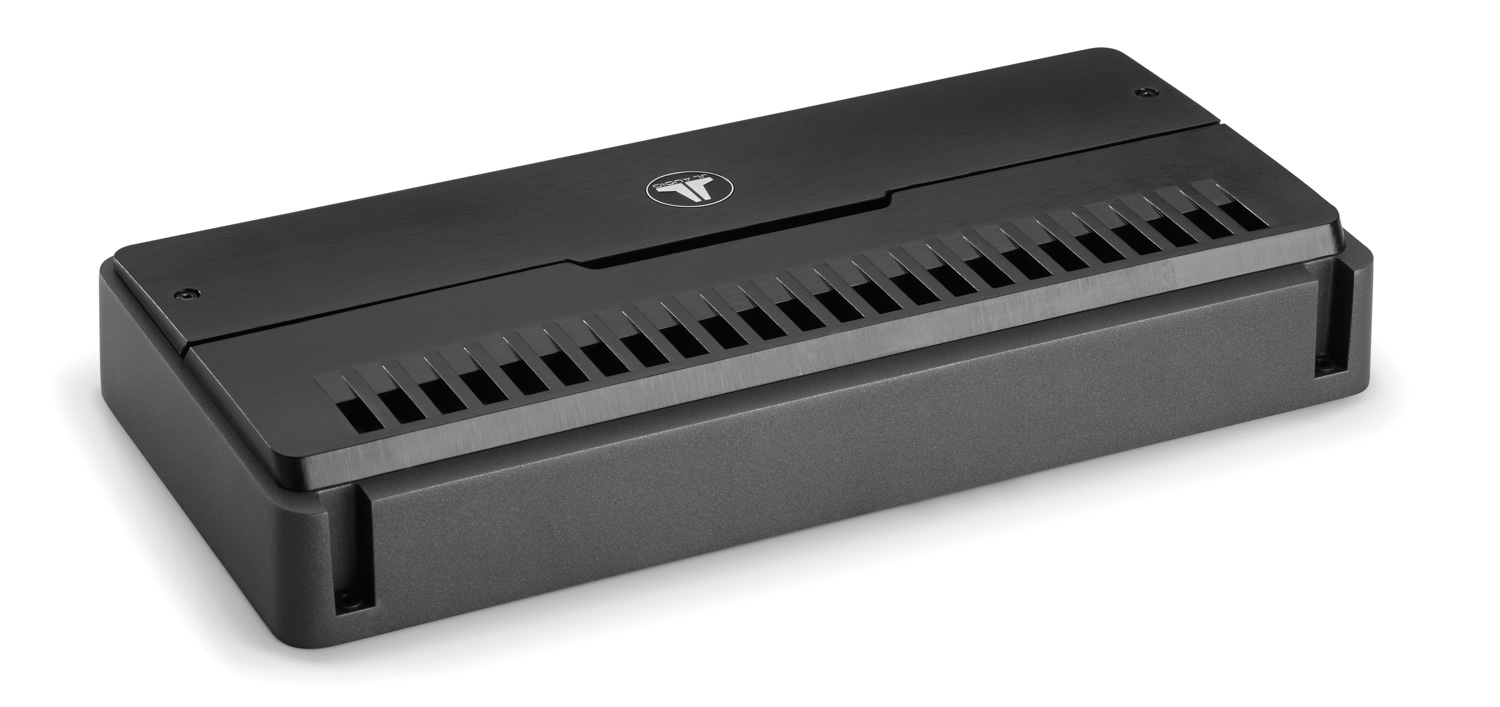

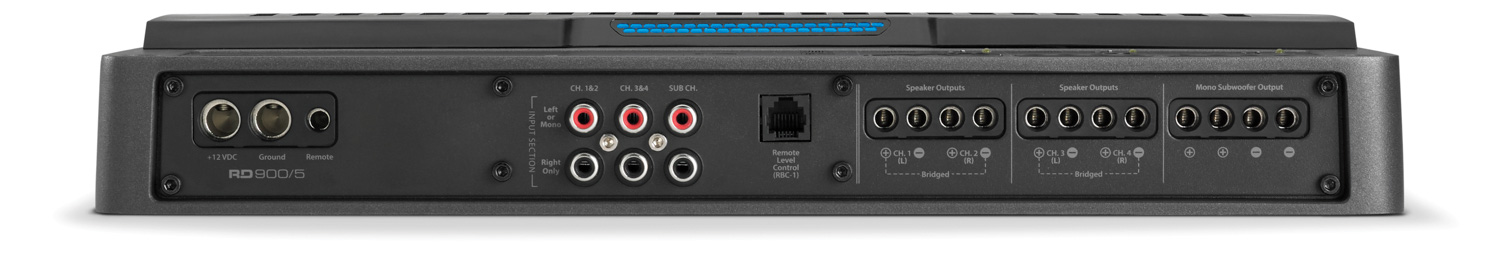

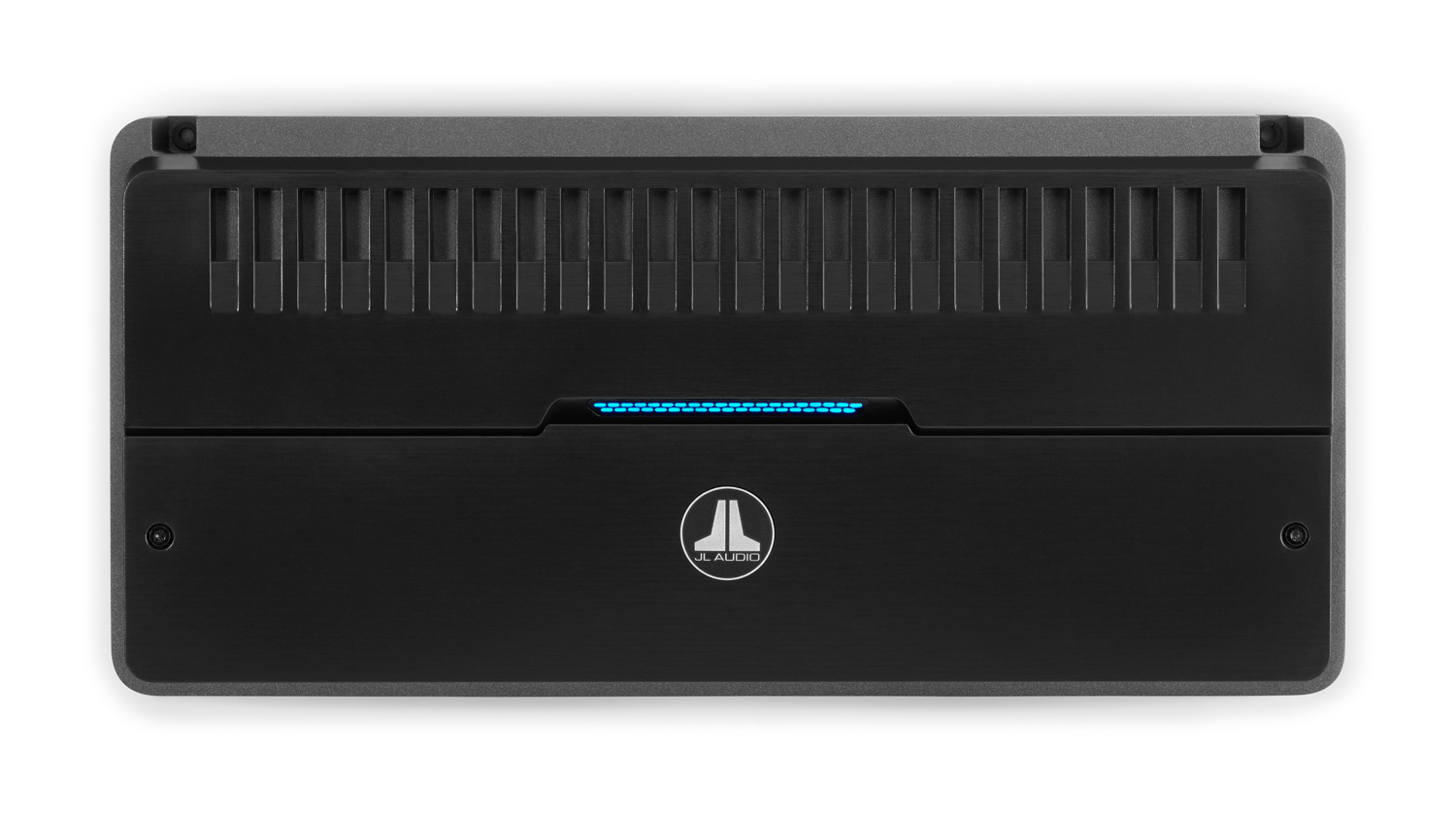

JL Audio RD900/5 5 Ch. Class D System Amplifier 900 W

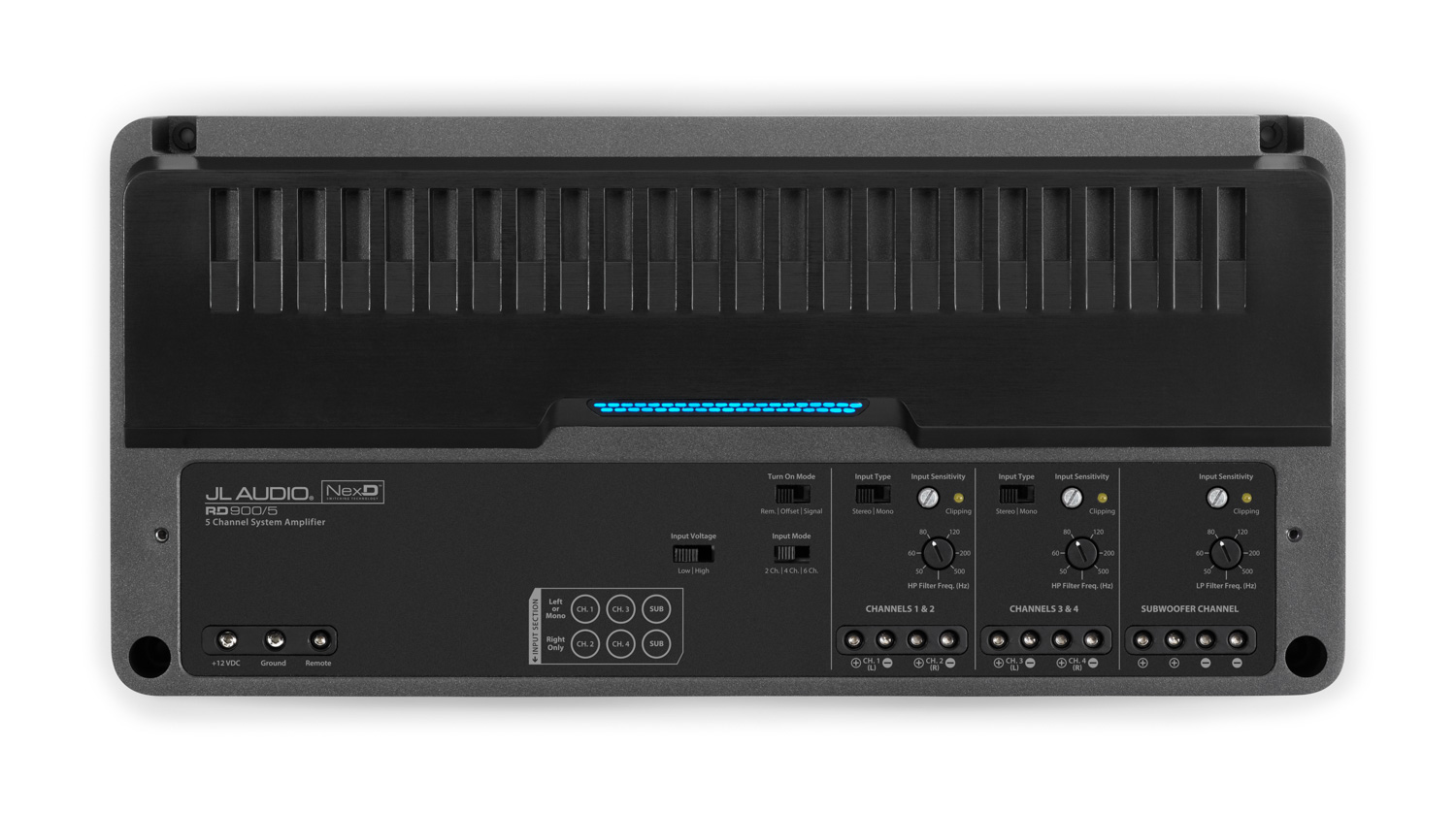

Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier. Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility. LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat. Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 4 Ω 70 W RMS x 4 Main Channels @ 2 Ω 100 W RMS x 4 Main Channels - Bridged @ 4Ω 200 W RMS x 2 Subwoofer Channel @ 4 Ω 225 W RMS x 1 Subwoofer Channel @ 3 Ω 325 W RMS x 1 Subwoofer Channel @ 2 Ω 500 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 4 Ω 60 W RMS x 4 Main Channels @ 2 Ω 90 W RMS x 4 Main Channels - Bridged @ 4Ω 180 W RMS x 2 Subwoofer Channel @ 4 Ω 200 W RMS x 1 Subwoofer Channel @ 3 Ω 250 W RMS x 1 Subwoofer Channel @ 2 Ω 350 W RMS x 1 Subwoofer Channel @ 1.5 Ω N/A General Specifications Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB) Frequency Response (Subwoofer Channel) 10 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch. THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) Signal Processing Filter Mode(s): Channels 1 & 2 (front) High-Pass only Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 500 Hz Filter Mode(s): Channels 3 & 4 (rear) High-Pass only Filter Slope(s): Channels 3 & 4 (rear) 12 dB/octave Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz Filter Mode(s): Subwoofer Channel Low-Pass only Filter Slope(s): Subwoofer Channel 12 dB/octave Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers No Filter Defeat Function No Infrasonic Filter: Subwoofer Channel No Remote Level Control Optional (RBC-1) Remote Level Modes Sub Ch. Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output No Source Channel Selection for PreOuts N/A Physical Specifications Height (H) 2.13 in / 54 mm Width (W) 14.66 in / 372 mm Depth (D) 6.96 in / 177 mm Net Weight 6.15 lb / 2.79 kg
