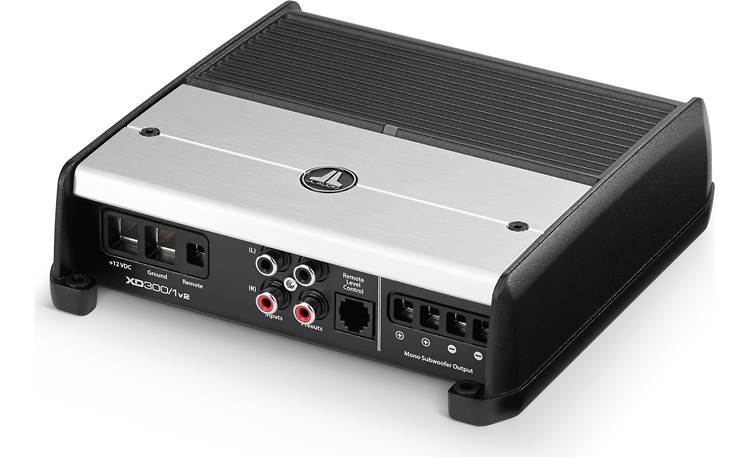

JL Audio XD300/1v2

Product highlights:
mono subwoofer amplifer
200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
optional wired remote level controller
Class D amplifier design with NextD™ switching amp technology
differential-balanced inputs eliminate noise coming from your vehicle's electrical system
Advanced Rollback Protection System prevents thermal shut-down
Connection Features
preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
high-level inputs — up to 8 volts RMS (about 16 watts)
DC offset or signal sensing auto turn-on eliminates need for remote lead
preamp outputs
8-gauge power and ground leads and a 30-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 30-amp in-line fuse between the distribution block and the amplifier is recommended
6-7/8"W x 2"H x 7-1/8"D
warranty: 2 years
Our 60-day money-back guarantee
MFR # 98601

What's in the box:
JL Audio XD300/1v2 owner's manual
Mono amplifier
Self-adhesive JL Audio badge
2.5mm Allen wrench
Owner's Manual
