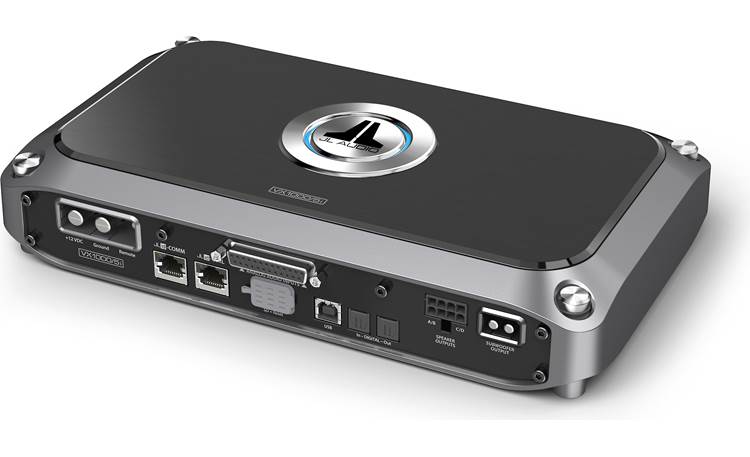

JL audio VX1000/5i

Product highlights:
5-channel car amplifier
75 watts RMS x 4 + 400 watts RMS x 1 (at 4 ohms)
100 watts RMS x 4 + 600 watts RMS x 1 (at 2 ohms)
200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
Class D amplifier design with NexD2™ switching amp technology
Digital Signal Processing:
24-bit 96 kHz digital processing
DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
3 Project Levels of tuning: Basic, Advanced, Expert
input routing and mixing
adjustable gain controls with clip indication
fully adjustable high-pass, low-pass, and bandpass filters
selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
phase and polarity control
time alignment in 0.01 ms (1/8") increments
Connection Features
differential-balanced inputs eliminate noise coming from your vehicle's electrical system
preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
high-level inputs — up to 16 volts RMS (about 60 watts)
DC offset or signal sensing auto turn-on eliminates need for remote lead
2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
2-channel analog preamp output (4V RMS)
JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
USB connection for device running TüN app (6-foot cable included)
wiring, fuse, and hardware not included with amplifier
4-gauge power and ground leads and an 80-amp fuse recommended
11-5/16"W x 2-1/8"H x 6-11/16"D
warranty: 2 years
Our 60-day money-back guarantee
MFR # 98632
What's in the box:
JL Audio VX1000/5i owner's manual

5-Channel amplifier
Power connector
14" Analog Input harness (25-pin D-Sub/8 RCA)
18" ABCD Speaker output harness
Subwoofer output connector
18" Speaker wire loom
"Sub" wire label
6' USB cable (Type A USB on one end and Type B USB on other end)
4 Corner caps
Corner cap tool
2 Silver thumbscrews
2 Black hex cap machine screws
2.5mm Hex wrench
3mm Hex wrench
JL Audio logo badge
Connection Guide
Registration card
