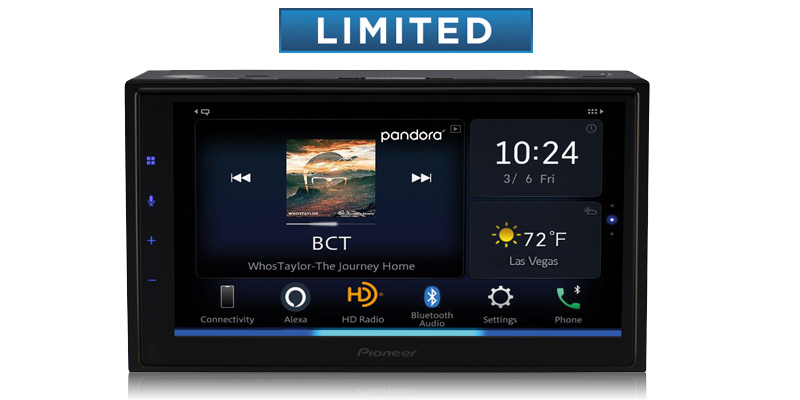

Pioneer DMH-W4660NEX

Product highlights:
General Features:
digital multimedia player with AM/FM tuner
plays media loaded with MP3, WMA, AAC, and high-res FLAC and DSD music files
6.8" capacitive touchscreen display
built-in Bluetooth for hands-free calling and music streaming
built-in HD Radio tuner
fits double-DIN (4" tall) dash openings

Smartphone Features:
Android Auto and Apple CarPlay compatible (wireless and wired)
built-in Amazon Alexa (with Wi-Fi connection)
display and command of select music, navigation, and other apps with iPhone and Android
Pandora and Spotify through Apple CarPlay, Android Auto, and Amazon Alexa
Siri Eyes Free control for select iPhones
wired screen-mirroring for select devices

Audio/Visual Features:
13-band graphic EQ
time alignment

Expandability:
compatible with SiriusXM satellite radio tuner
inputs: rear USB input, backup cam input, rear audio/video inputs (including input for second camera)
outputs: video output, 6-channel preamp outputs (4-volt front, rear, sub)

Other Information:
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
works with iDatalink Maestro module
retains factory features in a wide selection of vehicles
displays engine performance and other vehicle data on touchscreen
wireless remote included (optional wired remote)
warranty: 1 year
Our 60-day money-back guarantee
MFR # DMH-W4660NEX

What's in the box:
Pioneer DMH-W4660NEX owner's manual
Digital multimedia receiver (10A fuse)
Wiring harness
Preout/AV harness
58" USB-C extension cable
USB-C to USB-A adapter
Remote control (CXE5116)
CR2025 3V battery (pre-installed in remote)
Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
GPS antenna (attached 11.5' cable)
Self-adhesive square
3 Self-adhesive clips
Two-sided tape
4 Pan-head ISO screws (M5 x 9mm)
4 Flat-head ISO screws (M5 x 9mm)
Quick Start Guide
Installation Manual
"About Alexa Built-In" note
Warranty Information
"Caution" note
