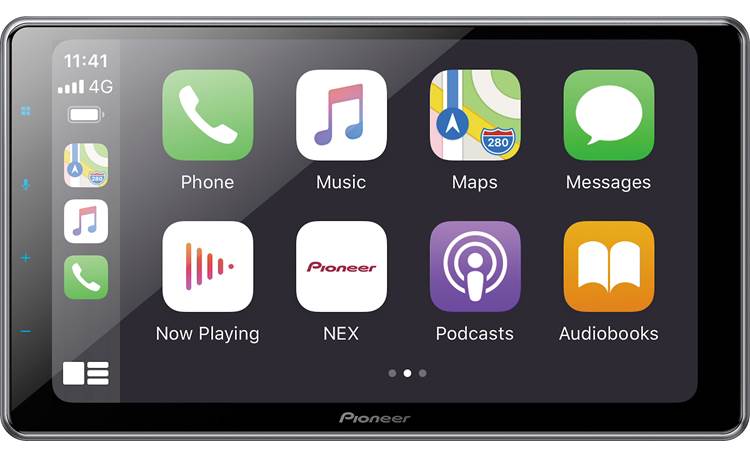

Pioneer DMH-WT7600NEX

Product highlights:
General Features:
digital multimedia player with AM/FM tuner (does not play CDs or DVDs)
9" floating capacitive HD touchscreen display
fits single-DIN dash openings
plays media loaded with MP3, WMA, AAC, WAV, and high-res FLAC and DSD music files
built-in Bluetooth for hands-free calling and music streaming
built-in HD Radio tuner

Smartphone Features:
Android Auto and Apple CarPlay compatible (wired or wireless)
Amazon Alexa built-in (with Wi-Fi connection)
display and command of select music, navigation, and other apps with iPhone and Android
Pandora and Spotify control through Apple CarPlay, Android Auto, and Amazon Alexa
Siri Eyes Free control for select iPhones

Audio/Visual Features:
13-band graphic EQ

Expandability:
compatible with SiriusXM satellite radio tuner
inputs: rear USB input, rear micro-HDMI input, rear A/V input (3.5 mm), two camera inputs (RCA)
outputs: video output (RCA), 6-channel preamp outputs (4-volt front, rear, sub)

Other Information:
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
works with iDataLink Maestro module
retains factory features in a wide selection of vehicles
displays engine performance and other vehicle data on touchscreen
wireless remote included (optional wired remote)
warranty: 1 year
Our 60-day money-back guarantee
MFR # DMH-WT7600NEX

What's in the box:
Pioneer DMH-WT7600NEX owner's manual
Touchscreen monitor (rear cover pre-installed)
Source unit (10A fuse)
Wiring harness
Preout/AV harness
58" USB-C extension cable
USB-C to USB-A adapter
Remote control (CXE5116)
CR2025 3V battery (pre-installed in remote)
Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
GPS antenna (attached 11.5' cable)
Self-adhesive square
3 Self-adhesive clips
Two-sided tape
Monitor bracket
6 Pan-head ISO screws (M5 x 9mm)
6 Flat-head ISO screws (M5 x 9mm)
4 Binding head screws (M4x12mm)
4 Binding head screws (4mm x 6mm)
4 Monitor cover screws (M2x4mm)
Quick Start Guide
Installation Manual
"About Alexa Built-In" note
Warranty Information
"Caution" note
"Attaching" The Monitor Cover" note
