Product highlights:

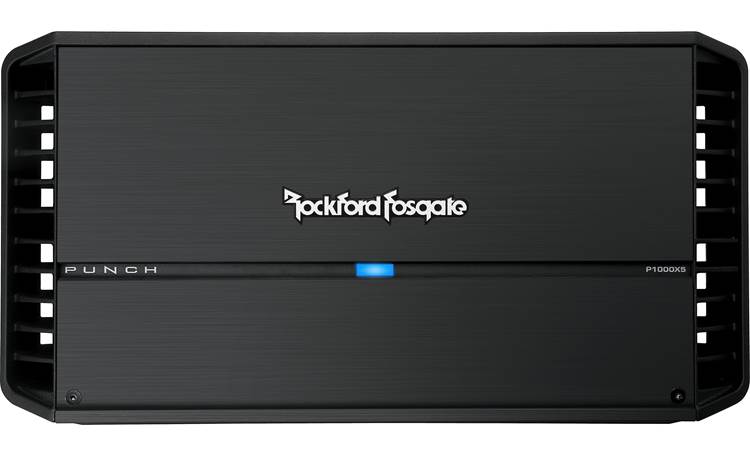

5-channel car amplifier
75 watts RMS x 4 + 150 watts RMS x 1 at 4 ohms
125 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
250 watts RMS x 2 bridged at 4 ohms + 500 watts RMS at 1 ohm
CEA-2006 compliant
Features:
variable high- and low-pass filters (50-250 Hz, 12 dB/octave)
variable PEQ2 bass/treble boost (0-18 dB at 45 Hz and 0-14 dB at 12.5K Hz)
switchable subsonic filter (28 Hz, 12 dB/octave) on subwoofer channel
C.L.E.A.N. gain setup system includes clip lights and link to Rockford Fosgate's setup tones
Class-BD amplifier design
frequency response: 20-20K Hz
Dynamic Thermal Management and MEHSA MOSFET cooling systems
MOSFET power and output stages
preamp and speaker-level inputs (speaker-level inputs require a speaker wire to RCA adapter)
signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
More Info:
optional PLC2 wired remote level control with clip light available
4-gauge power and ground leads and an 150-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 150-amp in-line fuse between the distribution block and the amplifier is recommended
15-1/8"W x 2-7/16"H x 8-13/16"D
warranty: 1 year
Our 60-day money-back guarantee
MFR # P1000X5
What's in the box:
Rockford Fosgate Punch P1000X5 owner's manual
5-Channel amplifier
Four 1-1/2" Self-tapping screws
2.5mm Allen wrench
Quick setup instructions
Certificate of Performance
