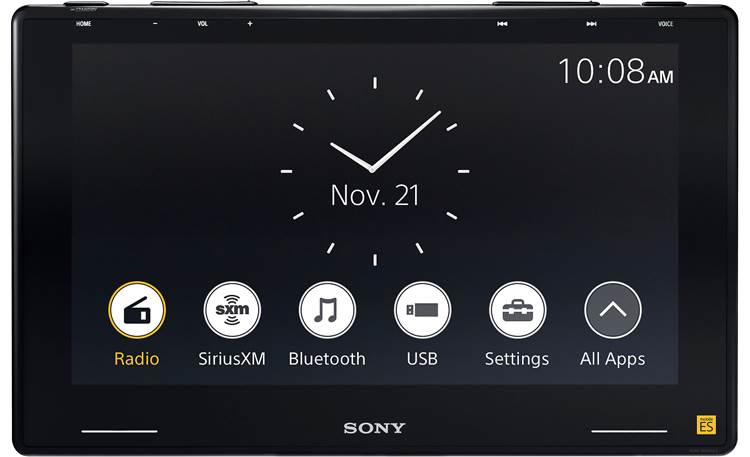

Sony XAV-9500ES

General Features:
digital multimedia receiver with AM/FM tuner (does not play CDs)
10.1" capacitive HD anti-glare touchscreen with four-way adjustable mount
fits single-DIN dash openings
Bluetooth hands-free calling and audio streaming
High-Resolution audio and High-Resolution wireless LDAC audio support
built-in ESS digital-to-analog converter
built-in high-grade 192-kHz / 24-bit digital signal processor
Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
wireless Apple CarPlay and wireless Android Auto compatible (no wired compatibility)

Audio/video Features:
plays MP3, WMA, WAV, AAC, FLAC, ALAC, DSF, and DSDIFF music files
14-band graphic equalizer with independent 8-band parametric EQ per channel
3-zone crossover

Expandability:
compatible with SiriusXM satellite radio tuner
inputs: rear USB Type-C port, backup cam input, two additional camera inputs
outputs: 6-channel preamp outputs (5-volt front, rear, sub)

Other Information:
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in internal amp (20 watts RMS CTA-2006/55 peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
works with iDataLink Maestro module
displays engine performance and other vehicle data on touchscreen
retains factory features in a wide selection of vehicles
warranty: 3 years
Our 60-day money-back guarantee
MFR # XAV-9500ES

What's in the box:
Sony XAV-9500ES owner's manual
Single-DIN source unit (10A fuse)
10.1" Touchscreen monitor
Wiring harness (attached 6.5' parking brake wire)
Camera/Preout harness
3-Wire to 3.5mm SWC adapter
59" USB-C extension cable
GPS antenna (attached 10' cable terminated by a FAKRA connector)
GPS Antenna mounting plate
Microphone with visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
Surface bracket
Two-sided tape
Four M5x9mm ISO-screws
Four M4x6mm machine screws
M3x8mm machine screw
Connector bracket
2 Rear-panel covers
Operating Instructions
Warranty Information
Installation Note
