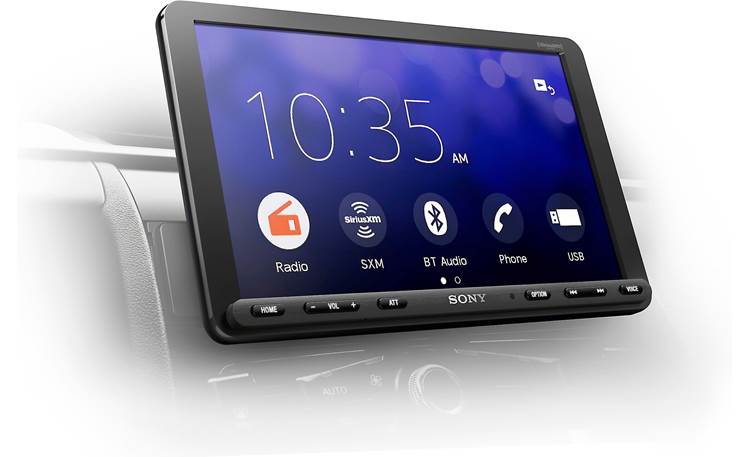

Sony XAV-AX8000

General Features:
digital multimedia receiver with AM/FM tuner (does not play CDs)
8.95" resistive touchscreen with three-way adjustable mount
fits single-DIN dash openings
Bluetooth hands-free calling and audio streaming
Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
Apple CarPlay compatible
Android Auto compatible

Audio/video Features:
plays MP3, WMA, AAC, and FLAC music files
10-band graphic equalizer
high- and low-pass filters
Bass Boost
Dynamic Stage Organizer for improving stereo image

Expandability:
works with SiriusXM SXV300 tuner
inputs: rear USB port, rear-view camera input
outputs: 5-channel preamp outputs (5-volt front, rear, mono sub)

Other Information:
wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
built-in internal amp (20 watts RMS CTA-2006/55 peak x 4 channels)
wireless remote
compatible with most factory steering wheel audio controls (adapter required)
super-fast start up time
warranty: 3 years
Our 60-day money-back guarantee
MFR # XAVAX8000

What's in the box:
Sony XAV-AX8000 owner's manual
Single-DIN source unit (10A fuse)
8.95" Touchscreen monitor
Wiring harness (6.5' parking brake wire)
3-Wire to 3.5mm SWC adapter
52" USB extension cable
23" USB extension cable
Remote control (RM-X170)
CR2025 3V battery (installed in remote)
Microphone w/ visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
Surface bracket
Two-sided tape
Four M5 x 6mm ISO-screws
Four M4 x 6mm machine screws
M3 x 8mm machine screw
Cable-tie
Joint-cover
2 Rear-panel covers
Cable-cover (pre-installed)
Operating Instructions
Warranty Information
Installation Note
