Rockford Fosgate HD9813RG-TKIT

Product highlights:
General Features:
custom-fit audio package for select Harley-Davidson motorcycles
includes Power Series 4-channel amplifier, two 6-1/2" coaxial speakers, and amplifier kit
Power TMS6RG Speaker Features:
6-1/2" speakers fit directly into front fairing location
Vertical Attach Surround Technique (VAST) increases cone area
carbon-fiber reinforced polypropylene cone
1" film dome tweeter with integrated phase plug and ASA grill
Santoprene VAST surround
power handling: 75 watts RMS (150 watts peak)
frequency response: 56-20,000 Hz
sensitivity: 91 dB
grilles and mounting hardware included
Power Series TM400X4ad Amplifier Features:
4-channel amp designed for motorcycle and powersports use
Class AD amp technology
Dynamic Thermal Management cooling system
selectable high- and low-pass filters (80 Hz, 12 dB/octave)
100 watts RMS x 4 at 4 ohms
bridgeable, 4-ohm stable per channel
Other Info:
amp dimensions: 6-15/16"W x 1-9/16"H x 4-5/16"D
warranty: 2 years
Our 60-day money-back guarantee
MFR # HD9813RG-TKIT
What's in the box:
Rockford Fosgate HD9813RG-TKIT owner's manual

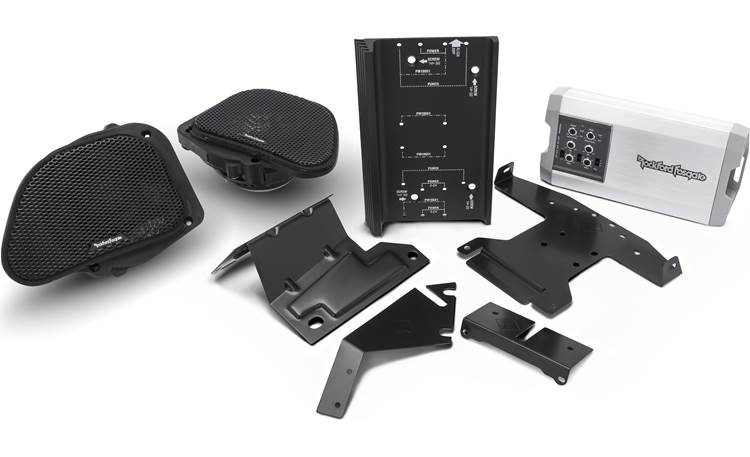

This Speaker and Amplifier Package contains three individually-packaged items in one box: TM400X4ad amplifier/ TMS6RG speakers/ and RFKHD custom amp mounting kit
The TM400X4ad box includes:
4-Channel moto-marine amplifier
Power/ground/turn-on plug (installed)
Two 8" Speaker output harnesses (bare wire to 4-pin Molex)
Two 14" Input harnesses (2 RCA to 4-pin Molex)
Setup Disc (CD)
Amplifier Quick Setup
Certificate of Performance Verification
The TMS6RG box includes:
Two 2-way speakers
2 Grilles (installed)
Six 3/4" Mounting screws
Installation manual (English/ French/ Spanish/ German/ Italian)
The RFKHD box includes:
Amp mounting plate/heat sink
3 Road Glide brackets (2 for 1998-2013 / 1 for 2015-up)
Street Glide bracket
Power cable assembly with 5' 8-gauge power/ground wire (in-line fuse holder on power wire with 60A Maxi fuse inserted) and 15" remote wire
10' Rear cable assembly
Output adapter cable (Two 12" lengths)
Input adapter cable (Two 6" lengths)
Front input cable (19" length)
Front output cable (22" length)
4 Rubber spacers
Eight 20" plastic wire ties
2 M5 x 15mm hex washer head bolts (requires 8mm socket)
4 M5 x 18mm socket countersunk screws (requires 3mm Allen wrench)
2 M5 flange nuts
2 M4 x 7mm button head bolts (requires 2.5mm Allen wrench)
2 M4 x 18mm set screws (requires 2mm Allen wrench)
6 M3 x 8mm socket countersunk screws (requires 2mm Allen wrench)
Installation Kit Wiring Diagram
